Basic Info.
Model NO.
TU-CA-RP
Shape
Tubular
Interface Type
Standard
Certification
UL
Brand
Es
Purity
Copper>99.9%, Al>99.5%
Size
16-300mm2
Stock
Warehouse in The UK
Transport Package
100 PCS/Pack / Customized
Specification
UL
Trademark
ES
Origin
China
HS Code
85369090
Production Capacity
500, 000 PCS/ Month
Product Description

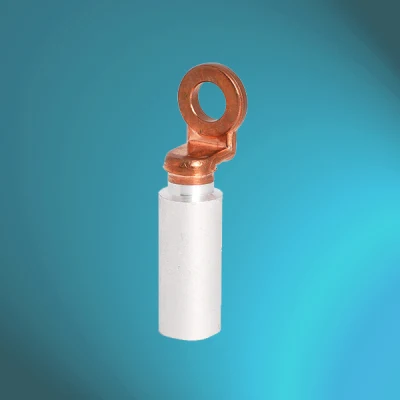

Crimping Type Copper Aluminium Bimetallic Cable Lugs
Application:
Bimetallic lug are mostly useful where an aluminum cable has to be terminated by a copper busbar or copper contact.
Technique of production:
The transition section between aluminum and copper is produced by friction welding, no breaking welding.
Barrels are supplied capped and filled with jointing compound to avoid oxidation of the aluminum conductor.
Material: 99.9% purity copper & 99.5% purity aluminum.
Final treatment: Acid cleaning
Sheet:
Standard package: inner plastic bag, middle box, outer carton
Certificate and test report:
IEC 61238 certificate, thermal cycling test report, and short-circuit test report.

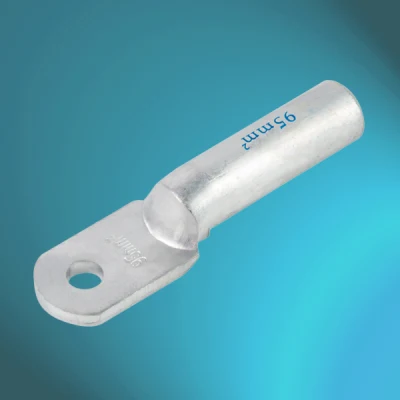

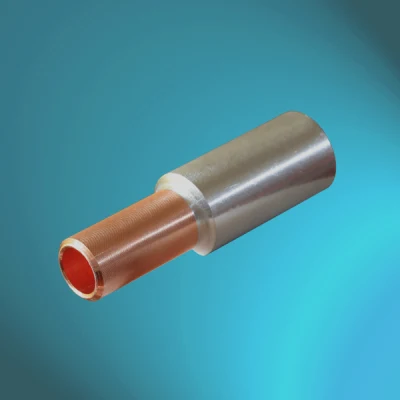

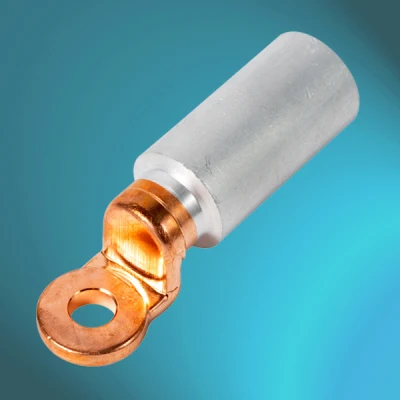

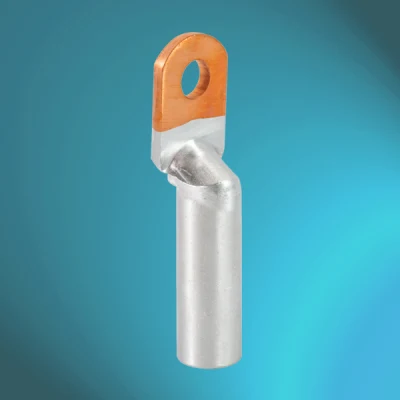

Related products:
![Ease Dtl Series Compression Copper Aluminium Ring Type Bimetallic Cable Lug](//img6.grofrom.com/www.gechiterminalco.com/226f3j00nkAEOUtWlyud/Ease-Dtl-Series-Compression-Copper-Aluminium-Ring-Type-Bimetallic-Cable-Lug.webp)
Workshop and warehouse:
International exhibition:
Europe Sales & Warehouse:
China Office & Production Base:
Company Information:
If you need more information, please refer to our website easesh.en.made-in-china.com
Application:
Bimetallic lug are mostly useful where an aluminum cable has to be terminated by a copper busbar or copper contact.
Technique of production:
The transition section between aluminum and copper is produced by friction welding, no breaking welding.
Barrels are supplied capped and filled with jointing compound to avoid oxidation of the aluminum conductor.
Material: 99.9% purity copper & 99.5% purity aluminum.
Final treatment: Acid cleaning
Sheet:
EASE CODE | SIZE(mm)2 | STUD | Φ | D | d | W | L1 | L | T |
TU-CA-RP-16/12 | 16 | 12 | 13 | 16 | 5.5 | 24 | 42 | 90 | 4.0 |
TU-CA-RP-25/12 | 25 | 12 | 13 | 16 | 6.5 | 24 | 42 | 90 | 4.0 |
TU-CA-RP-35/12 | 35 | 12 | 13 | 16 | 8.0 | 24 | 42 | 90 | 4.0 |
TU-CA-RP-50/12 | 50 | 12 | 13 | 20 | 9.0 | 24 | 43 | 92 | 5.0 |
TU-CA-RP-70/12 | 70 | 12 | 13 | 20 | 11.0 | 24 | 43 | 92 | 5.0 |
TU-CA-RP-95/12 | 95 | 12 | 13 | 20 | 12.5 | 24 | 43 | 92 | 5.0 |
TU-CA-RP-120/12 | 120 | 12 | 13 | 25 | 13.5 | 30 | 60 | 117 | 6.0 |
TU-CA-RP-150/12 | 150 | 12 | 13 | 25 | 15.5 | 30 | 60 | 117 | 6.0 |
TU-CA-RP-185/12 | 185 | 12 | 13 | 32 | 17.0 | 35 | 60 | 124 | 6.5 |
TU-CA-RP-240/12 | 240 | 12 | 13 | 32 | 19.5 | 35 | 60 | 124 | 6.5 |
TU-CA-RP-300/12 | 300 | 12 | 13 | 34 | 22.5 | 35 | 62 | 130 | 7.0 |
Standard package: inner plastic bag, middle box, outer carton
![Ease Dtl Series Compression Copper Aluminium Ring Type Bimetallic Cable Lug](http://img6.grofrom.com/www.gechiterminalco.com/226f3j00KodanFQBpNgA/Ease-Dtl-Series-Compression-Copper-Aluminium-Ring-Type-Bimetallic-Cable-Lug.webp)
Certificate and test report:
IEC 61238 certificate, thermal cycling test report, and short-circuit test report.
![Ease Dtl Series Compression Copper Aluminium Ring Type Bimetallic Cable Lug](http://img6.grofrom.com/www.gechiterminalco.com/226f3j00yqJTnaQlLNgd/Ease-Dtl-Series-Compression-Copper-Aluminium-Ring-Type-Bimetallic-Cable-Lug.webp)
Related products:
![Ease Dtl Series Compression Copper Aluminium Ring Type Bimetallic Cable Lug](http://img6.grofrom.com/www.gechiterminalco.com/226f3j00nkAEOUtWlyud/Ease-Dtl-Series-Compression-Copper-Aluminium-Ring-Type-Bimetallic-Cable-Lug.webp)
Workshop and warehouse:
![Ease Dtl Series Compression Copper Aluminium Ring Type Bimetallic Cable Lug](http://img6.grofrom.com/www.gechiterminalco.com/226f3j00NomTnrQKyFzJ/Ease-Dtl-Series-Compression-Copper-Aluminium-Ring-Type-Bimetallic-Cable-Lug.webp)
![Ease Dtl Series Compression Copper Aluminium Ring Type Bimetallic Cable Lug](http://img6.grofrom.com/www.gechiterminalco.com/226f3j00ncAQNITswyzw/Ease-Dtl-Series-Compression-Copper-Aluminium-Ring-Type-Bimetallic-Cable-Lug.webp)
![Ease Dtl Series Compression Copper Aluminium Ring Type Bimetallic Cable Lug](http://img6.grofrom.com/www.gechiterminalco.com/226f3j00NcJtOiaqyFrA/Ease-Dtl-Series-Compression-Copper-Aluminium-Ring-Type-Bimetallic-Cable-Lug.webp)
International exhibition:
![Ease Dtl Series Compression Copper Aluminium Ring Type Bimetallic Cable Lug](http://img6.grofrom.com/www.gechiterminalco.com/226f3j00ncdtNbQElygm/Ease-Dtl-Series-Compression-Copper-Aluminium-Ring-Type-Bimetallic-Cable-Lug.webp)
Europe Sales & Warehouse:
![Ease Dtl Series Compression Copper Aluminium Ring Type Bimetallic Cable Lug](http://img6.grofrom.com/www.gechiterminalco.com/226f3j00OqmtFBQyPnpd/Ease-Dtl-Series-Compression-Copper-Aluminium-Ring-Type-Bimetallic-Cable-Lug.webp)
China Office & Production Base:
![Ease Dtl Series Compression Copper Aluminium Ring Type Bimetallic Cable Lug](http://img6.grofrom.com/www.gechiterminalco.com/226f3j00nodtOZTFiygm/Ease-Dtl-Series-Compression-Copper-Aluminium-Ring-Type-Bimetallic-Cable-Lug.webp)
Company Information:
EASE, founded in 1996, the leading manufacturer in Europe and China for Cable & Lighting Accessories. A totally positive business approach and dedication to a policy of making outstanding quality from China is key to our continued success. With Strong focus on products quality, heavy investment has been madein tooling design and mould making for our group manufacturers. Strictly raw material control and evaluation guarantees the consistency of our mass production quality. All manufacturing is carried out under ISO 9001, with most of them complying with RoHS, REACH and certified by UL, VDE and IMQ making EASE products the envy of many competitors. Predominately addressing the electrical OEM markets, our expertise and specialty fulfill the needs of those companies who recognize the benefits of outsourcing products from hassle-free one-stop supplier's service, leaving them to focus on their core business. With our comprehensive quality control systems, EASE ensures the consistency of all OEM production from container to container shipments for many years. |
If you need more information, please refer to our website easesh.en.made-in-china.com
