- Overview
- Product Description
- Detailed Photos
Basic Info.
Model NO.
RNB
Shape
Round
Package
100PCS/Bag
Color
Natural
Transport Package
Carton
Specification
RNB1.25-3
Trademark
Tzeje
Origin
Wenzhou City
HS Code
853690
Production Capacity
30, 000, 000 PCS/Month
Product Description
About Products

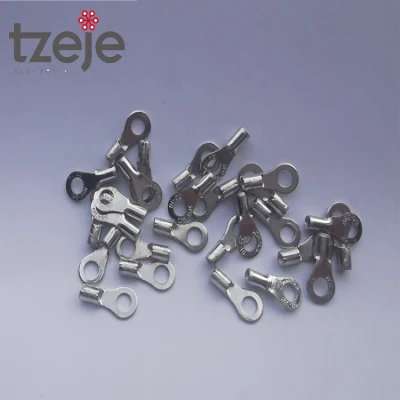

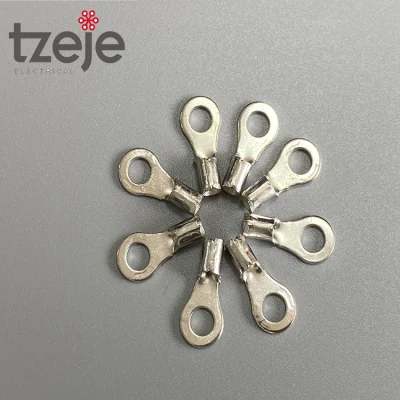

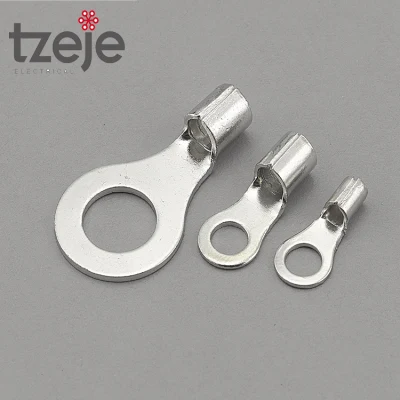

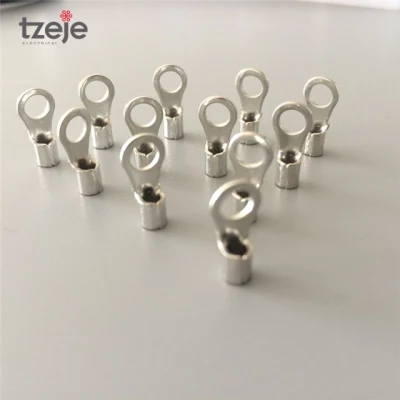

1. Products Name: Non-insulated ring terminal
2. Body material: Copper
3. Insulation: non-insulation
4. Packing: 100pcs/bag, inner box and export carton
5. Color: natural
![M3 Cable Connector Copper Ring Terminal Naked Wire Connector Rnb1.25-3](http://img6.grofrom.com/www.gechiterminalco.com/226f3j00RwMIefZlfQqd/M3-Cable-Connector-Copper-Ring-Terminal-Naked-Wire-Connector-Rnb1-25-3.webp)
![M3 Cable Connector Copper Ring Terminal Naked Wire Connector Rnb1.25-3](http://img6.grofrom.com/www.gechiterminalco.com/226f3j00UmBHvIZsMEow/M3-Cable-Connector-Copper-Ring-Terminal-Naked-Wire-Connector-Rnb1-25-3.webp)
Item No. | USA Bolt no. | Bolt Dia. d2(mm) | Dimension(mm) | E | D Φ | d Φ | Description | ||
B | F | L | |||||||
RNB1.25-3 | #4 | 3.2 | 5.7 | 4.95 | 12.6 | 4.8 | 3.4 | 1.7 | Lead Section:0.5-1.5mm² A.W.G:22-16 Max. Current: 10A Material: Copper Insulation: non-insulation |
RNB1.25-3.5S | #6 | 3.7 | 5.7 | 4.95 | 12.6 | ||||
RNB1.25-3.5M | #6 | 3.7 | 6.6 | 6.3 | 14.4 | ||||
RNB1.25-3.5L | #6 | 3.7 | 8.0 | 7.0 | 15.8 | ||||
RNB1.25-4S | #8 | 4.3 | 6.6 | 6.3 | 14.4 | ||||
RNB1.25-4L | #8 | 4.3 | 8.0 | 7.0 | 15.8 | ||||
RNB1.25-5S | #10 | 5.3 | 8.0 | 7.0 | 15.8 | ||||
RNB1.25-5M | #10 | 5.3 | 9.5 | 8.5 | 17 | ||||
RNB1.25-5L | #10 | 5.3 | 11.6 | 11.1 | 21.8 | ||||
RNB1.25-6 | 1/4 | 6.5 | 11.6 | 11.1 | 21.8 | ||||
RNB1.25-8 | 5/16 | 8.5 | 11.6 | 11.1 | 21.8 | ||||
RNB1.25-10 | 3/8 | 10.5 | 19.2 | 16.0 | 30.4 | ||||
RNB1.25-12 | 1/2 | 13.0 | 19.2 | 16.0 | 30.4 | ||||
RNB1.25-14 | 9/16 | 15.0 | 27.0 | 21.0 | 39.3 | ||||
RNB1.25-16 | 5/8 | 17.0 | 27.0 | 21.0 | 39.3 | ||||
RNB1.25-20 | 3/4 | 21.0 | 27.0 | 21.0 | 39.3 | ||||
RNB2-3 | #4 | 3.2 | 6.6 | 4.3 | 12.5 | 4.8 | 4.1 | 2.3 | Lead Section:1.5-2.5mm² A.W.G:16-14 Max. Current: 27A Material: Copper Insulation: non-insulation |
RNB2-3.5S | #6 | 3.7 | 6.6 | 4.3 | 12.5 | ||||
RNB2-3.5M | #6 | 3.7 | 6.6 | 6.3 | 14.5 | ||||
RNB2-3.5L | #6 | 3.7 | 8.5 | 7.4 | 16.5 | ||||
RNB2-4S | #8 | 4.3 | 6.6 | 6.3 | 14.5 | ||||
RNB2-4L | #8 | 4.3 | 8.5 | 7.4 | 16.5 | ||||
RNB2-5S | #10 | 5.3 | 8.5 | 7.4 | 16.5 | ||||
RNB2-5L | #10 | 5.3 | 9.5 | 7.4 | 17.0 | ||||
RNB2-6 | 1/4 | 6.5 | 12.0 | 11.0 | 21.8 | ||||
RNB2-8 | 5/16 | 8.5 | 12.0 | 11.0 | 21.8 | ||||
RNB2-10 | 3/8 | 10.5 | 13.6 | 13.9 | 25.5 | ||||
RNB2-12 | 1/2 | 13.0 | 19.2 | 16.0 | 30.4 | ||||
RNB2-14 | 9/16 | 15.0 | 27.0 | 21.0 | 39.3 | ||||
RNB2-16 | 5/8 | 17.0 | 27.0 | 21.0 | 39.3 | ||||
RNB2-20 | 3/4 | 21.0 | 27.0 | 21.0 | 39.3 | ||||
RNB3.5-4 | #8 | 4.3 | 8.0 | 8.0 | 18.0 | 6.0 | 5.1 | 3.0 | Lead Section:2.5-4mm² A.W.G:14-12 Max. Current: 37A Material: Copper Insulation: non-insulation |
RNB3.5-5S | #10 | 5.3 | 8.0 | 8.0 | 18.0 | ||||
RNB3.5-5L | #10 | 5.3 | 12.0 | 9.4 | 21.4 | ||||
RNB3.5-6 | 1/4 | 6.5 | 12.0 | 9.4 | 21.4 | ||||
RNB3.5-8 | 5/16 | 8.5 | 15.0 | 13.5 | 27.0 | ||||
RNB3.5-10 | 3/8 | 10.5 | 15.0 | 13.5 | 27.0 | ||||
RNB3.5-12 | 1/2 | 13.0 | 19.2 | 16.0 | 32.4 | ||||
RNB5.5-3.5 | #6 | 3.7 | 7.2 | 6.1 | 15.7 | 6.0 | 5.6 | 3.4 | Lead Section:4-6mm² A.W.G:12-10 Max. Current: 48A Material: Copper Insulation: non-insulation |
RNB5.5-4S | #8 | 4.3 | 7.2 | 6.1 | 15.7 | ||||
RNB5.5-4L | #8 | 4.3 | 9.5 | 8.3 | 19.0 | ||||
RNB5.5-5 | #10 | 5.3 | 9.5 | 8.3 | 19.0 | ||||
RNB5.5-6 | 1/4 | 6.5 | 12.0 | 10.5 | 22.5 | ||||
RNB5.5-8 | 5/16 | 8.5 | 15.0 | 13.7 | 28.0 | ||||
RNB5.5-10 | 3/8 | 10.5 | 15.0 | 13.7 | 28.0 | ||||
RNB5.5-12 | 1/2 | 13.0 | 19.2 | 16.0 | 32.4 | ||||
RNB5.5-14 | 9/16 | 15.0 | 32.0 | 25.2 | 47.2 | ||||
RNB5.5-16 | 5/8 | 17.0 | 32.0 | 25.2 | 47.2 | ||||
RNB5.5-20 | 3/4 | 21.0 | 32.0 | 25.2 | 47.2 | ||||
RNB8-4S | #8 | 4.3 | 8.8 | 10.5 | 23.8 | 8.5 | 7.2 | 4.5 | Lead Section:6-10mm² A.W.G:8 Max. Current: 62A Material: Copper Insulation: non-insulation |
RNB8-4L | #8 | 4.3 | 12.0 | 9.3 | 23.8 | ||||
RNB8-5S | #10 | 5.3 | 8.8 | 10.5 | 23.8 | ||||
RNB8-5M | #10 | 5.3 | 12.0 | 9.3 | 23.8 | ||||
RNB8-5L | #10 | 5.3 | 15.0 | 13.8 | 29.8 | ||||
RNB8-6 | 1/4 | 6.5 | 15.0 | 13.8 | 29.8 | ||||
RNB8-8 | 5/16 | 8.5 | 15.0 | 13.8 | 29.8 | ||||
RNB8-10 | 3/8 | 10.5 | 15.0 | 13.8 | 29.8 | ||||
RNB8-12 | 1/2 | 13.0 | 20.0 | 15.0 | 33.5 | ||||
RNB14-4 | #8 | 4.3 | 12.0 | 13.3 | 29.8 | 10.5 | 9.0 | 5.8 | Lead Section:10-16mm² A.W.G:6 Max. Current: 88A Material: Copper Insulation: non-insulation |
RNB14-5 | #10 | 5.3 | 12.0 | 13.3 | 29.8 | ||||
RNB14-5L | #10 | 5.3 | 16.0 | 14.5 | 32.5 | ||||
RNB14-6 | 1/4 | 6.5 | 16.0 | 14.2 | 32.5 | ||||
RNB14-8 | 5/16 | 8.5 | 16.0 | 14.2 | 32.5 | ||||
RNB14-10 | 3/8 | 10.5 | 16.0 | 14.2 | 32.5 | ||||
RNB14-12 | 1/2 | 13.0 | 22.0 | 19.8 | 41.0 | ||||
RNB22-5S | #10 | 5.3 | 12.2 | 14.5 | 33.2 | 12.0 | 11.5 | 7.7 | Lead Section:16-25mm² A.W.G:4 Max. Current: 115A Material: Copper Insulation: non-insulation |
RNB22-5L | #10 | 5.3 | 16.5 | 13.5 | 33.5 | ||||
RNB22-6 | 1/4 | 6.5 | 16.5 | 13.5 | 33.5 | ||||
RNB22-8 | 5/16 | 8.5 | 16.5 | 13.5 | 33.5 | ||||
RNB22-10 | 3/8 | 10.5 | 16.5 | 13.5 | 33.5 | ||||
RNB22-12 | 1/2 | 13.0 | 22.0 | 19.7 | 42.5 | ||||
RNB38-5 | #10 | 5.3 | 15.3 | 17.4 | 39.0 | 14.0 | 13.3 | 9.4 | Lead Section:30-50mm² A.W.G:2 Max. Current: 160A Material: Copper Insulation: non-insulation |
RNB38-6 | 1/4 | 6.5 | 22.0 | 17.7 | 42.7 | ||||
RNB38-8S | 5/16 | 8.5 | 15.3 | 17.4 | 39.0 | ||||
RNB38-8L | 5/16 | 8.5 | 22.0 | 17.7 | 42.7 | ||||
RNB38-10S | 3/8 | 10.5 | 15.3 | 17.4 | 39.0 | ||||
RNB38-10L | 3/8 | 10.5 | 22.0 | 17.7 | 42.7 | ||||
RNB38-11 | 7/16 | 11.5 | 22.0 | 17.7 | 42.7 | ||||
RNB38-12 | 1/2 | 13.0 | 22.0 | 17.7 | 42.7 | ||||
RNB60-6 | 1/4 | 6.5 | 22.0 | 20.7 | 49.7 | 18.0 | 15.4 | 11.4 | Lead Section:50-70mm² A.W.G:1/0 Max. Current: 215A Material: Copper Insulation: non-insulation |
RNB60-8 | 5/16 | 8.5 | |||||||
RNB60-10 | 3/8 | 10.5 | |||||||
RNB60-11 | 7/16 | 11.5 | |||||||
RNB60-12 | 1/2 | 13.0 | |||||||
RNB60-14 | 9/16 | 15.0 | 32.0 | 23.5 | 57.5 | 18.0 | 15.4 | 11.4 | |
RNB60-16 | 5/8 | 17.0 | |||||||
RNB60-18 | 11/16 | 19.0 | |||||||
RNB60-20 | 3/4 | 21.0 | |||||||
RNB60-22 | 7/8 | 23.0 | |||||||
RNB70-6 | 1/4 | 6.5 | 24.0 | 20.0 | 50.0 | 18.0 | 17.5 | 13.3 | Lead Section:70-95mm² A.W.G:2/0 Max. Current: 235A Material: Copper Insulation: non-insulation |
RNB70-8 | 5/16 | 8.5 | |||||||
RNB70-10 | 3/8 | 10.5 | |||||||
RNB70-11 | 7/16 | 11.5 | |||||||
RNB70-12 | 1/2 | 13.0 | |||||||
RNB70-14 | 9/16 | 15.0 | 32.0 | 26.0 | 61.0 | 18.0 | 17.5 | 13.3 | |
RNB70-16 | 5/8 | 17.0 | |||||||
RNB70-18 | 11/16 | 19.0 | |||||||
RNB70-20 | 3/4 | 21.0 | |||||||
RNB70-22 | 7/8 | 23.0 | |||||||
RNB80-6 | 1/4 | 6.5 | 27.0 | 20.7 | 54.2 | 20.0 | 19.5 | 14.5 | Lead Section:95-120mm² A.W.G:2/0 Max. Current: 235A Material: Copper Insulation: non-insulation |
RNB80-8 | 5/16 | 8.5 | |||||||
RNB80-10 | 3/8 | 10.5 | |||||||
RNB80-11 | 7/16 | 11.5 | |||||||
RNB80-12 | 1/2 | 13.0 | |||||||
RNB80-14 | 9/16 | 15.0 | 32.0 | 32.0 | 68.0 | 20.0 | 19.5 | 14.5 | |
RNB80-16 | 5/8 | 17.0 | |||||||
RNB80-18 | 11/16 | 19.0 | |||||||
RNB80-20 | 3/4 | 21.0 | |||||||
RNB80-22 | 7/8 | 23.0 | |||||||
RNB100-6 | 1/4 | 6.5 | 28.5 | 20.4 | 55.6 | 21.0 | 22.1 | 16.4 | Lead Section:120-150mm² A.W.G:4/0 Max. Current: 300A Material: Copper Insulation: non-insulation |
RNB100-8 | 5/16 | 8.5 | |||||||
RNB100-10 | 3/8 | 10.5 | |||||||
RNB100-11 | 7/16 | 11.5 | |||||||
RNB100-12 | 1/2 | 13.0 | |||||||
RNB100-14 | 9/16 | 15.0 | 32.0 | 32.0 | 69.0 | 21.0 | 22.1 | 16.4 | |
RNB100-16 | 5/8 | 17.0 | |||||||
RNB100-18 | 11/16 | 19.0 | |||||||
RNB100-20 | 3/4 | 21.0 | |||||||
RNB100-22 | 7/8 | 23.0 | |||||||
RNB150-8 | 5/16 | 8.5 | 36.0 | 23.0 | 66.0 | 27.0 | 26.6 | 19.5 | Lead Section:150-185mm² A.W.G:250/300 Max. Current: 395A Material: Copper Insulation: non-insulation |
RNB150-10 | 3/8 | 10.5 | |||||||
RNB150-11 | 7/16 | 11.5 | |||||||
RNB150-12 | 1/2 | 13.0 | |||||||
RNB150-14 | 9/16 | 15.0 | |||||||
RNB150-16 | 5/8 | 17.0 | |||||||
RNB150-18 | 11/16 | 19.0 | 36.0 | 36.0 | 81.0 | 27.0 | 26.6 | 19.5 | |
RNB150-20 | 3/4 | 21.0 | |||||||
RNB150-22 | 7/8 | 23.0 | |||||||
RNB150-24 | 15/16 | 25.0 | |||||||
RNB150-27 | 1 | 28.0 | |||||||
RNB180-8 | 5/16 | 8.5 | 38.5 | 24.5 | 69.0 | 28.5 | 28.6 | 21.0 | Lead Section:185-240mm² A.W.G:300/350 Max. Current: 440A Material: Copper Insulation: non-insulation |
RNB180-10 | 3/8 | 10.5 | |||||||
RNB180-11 | 7/16 | 11.5 | |||||||
RNB180-12 | 1/2 | 13.0 | |||||||
RNB180-14 | 9/16 | 15.0 | |||||||
RNB180-16 | 5/8 | 17.0 | |||||||
RNB180-18 | 11/16 | 19.0 | 38.5 | 39.0 | 86.6 | 28.5 | 28.6 | 21.0 | |
RNB180-20 | 3/4 | 21.0 | |||||||
RNB180-22 | 7/8 | 23.0 | |||||||
RNB180-24 | 15/16 | 25.0 | |||||||
RNB180-27 | 1 | 28.0 | |||||||
RNB200-8 | 5/16 | 8.5 | 44.0 | 24.5 | 72.0 | 31.5 | 32.6 | 24.0 | Lead Section:240-300mm² A.W.G:500/600 Max. Current: 470A Material: Copper Insulation: non-insulation |
RNB200-10 | 3/8 | 10.5 | |||||||
RNB200-11 | 7/16 | 11.5 | |||||||
RNB200-12 | 1/2 | 13.0 | |||||||
RNB200-14 | 9/16 | 15.0 | |||||||
RNB200-16 | 5/8 | 17.0 | |||||||
RNB200-18 | 11/16 | 19.0 | 44.0 | 37.5 | 91.0 | 31.5 | 32.6 | 24.0 | |
RNB200-20 | 3/4 | 21.0 | |||||||
RNB200-22 | 7/8 | 23.0 | |||||||
RNB200-24 | 15/16 | 25.0 | |||||||
RNB200-27 | 1 | 28.0 | |||||||
RNB325-8 | 5/16 | 8.5 | 50.5 | 33.5 | 88.0 | 35.5 | 37.6 | 28.0 | Lead Section:300-400mm² A.W.G:500/600 Max. Current: 650A Material: Copper Insulation: non-insulation |
RNB325-10 | 3/8 | 10.5 | |||||||
RNB325-11 | 7/16 | 11.5 | |||||||
RNB325-12 | 1/2 | 13.0 | |||||||
RNB325-14 | 9/16 | 15.0 | |||||||
RNB325-16 | 5/8 | 17.0 | |||||||
RNB325-18 | 11/16 | 19.0 | 50.5 | 45.0 | 105.7 | 35.5 | 37.6 | 28.0 | |
RNB325-20 | 3/4 | 21.0 | |||||||
RNB325-22 | 7/8 | 23.0 | |||||||
RNB325-24 | 15/16 | 25.0 | |||||||
RNB325-27 | 1 | 28.0 |
