Basic Info.
Model NO.
RV
Character
Insulation
Species
Terminal
Production Process
Cold Pressing
Shape
Round
Interface Type
AC/DC
Certification
Ce RoHS ISO9001
Brand
Yingfa
OEM/ODM
Accept
Colour
Red, Blue, Black, Yellow
Max.Current
19A, 27A, 37A, 48A
Wire Range
0.5-6mm2
Condition
New
Thickness
0.6mm0.7mm 0.8mm 1.0mm
Sample
Free
Factory
Yes
Quality
High Quality with Cheap Price
Custom Label
Accepted
Transport Package
Inner Bag/Export Carton/Desigh Carton
Specification
RV series
Trademark
YINGFA or OEM
Origin
China, Zhejiang
HS Code
8536900000
Production Capacity
8000, 000PCS/Week
Packaging & Delivery
Package Size
15.00cm * 10.00cm * 5.00cm
Package Gross Weight
0.500kg
Product Description

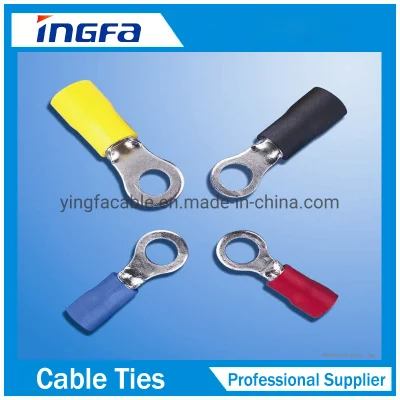

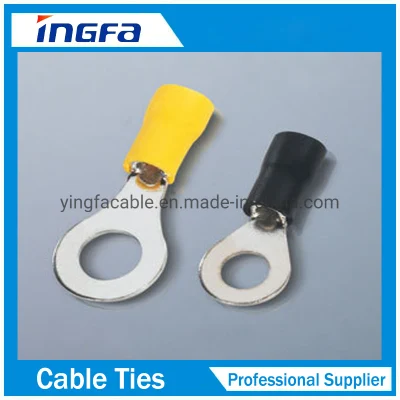

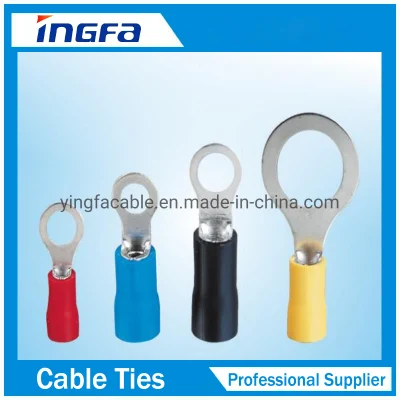

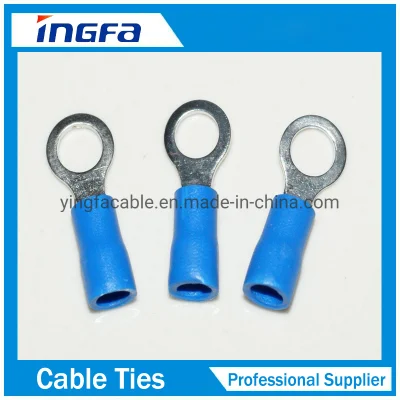

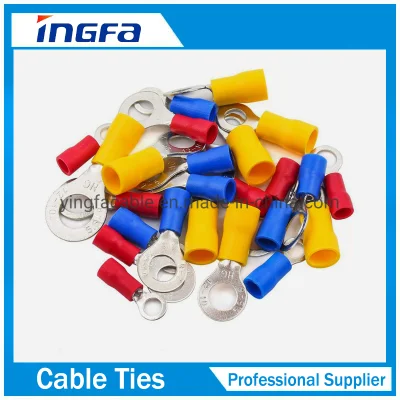

Free Sample RV Screw Ring Copper Terminal with RoHS Ce ISO Certificate
Specifications:
Type: RV
Terminal body: Copper
Material: RoHS approved copper, PP Insulation.
Finish: Tin plated
Standard: CE, RoHS, TUV, SGS, CQC
Packaging Detail: 1000PCS 100PCS 50PCS per polybag, each bag per paper box
Delivery Detail Within 1-7days
![Free Sample RV Screw Ring Copper Terminal with RoHS Ce ISO Certificate](http://img6.grofrom.com/www.gechiterminalco.com/226f3j00IjHbwivlMFqz/Free-Sample-RV-Screw-Ring-Copper-Terminal-with-RoHS-Ce-ISO-Certificate.webp)
Product Parameters:
0.5~1.5mm 2 (22-16) Imax=19A
ITEM.NO. | US SYSTEM OF BOLTS | d2 | DIMENSION | COLOR | ||||
B(mm) | L(mm) | F(mm) | H(mm) | D (mm) | ||||
RV1.25-3 | #4 | 3.2 | 5.7 | 17.8 | 4.95 | 10.0 | 4.3 | Red |
RVS1.25-3.5 | #6 | 3.7 | 5.7 | 17.8 | 4.95 | |||
RVM1.25-3.5 | #6 | 3.7 | 6.6 | 20.1 | 6.3 | |||
RVL1.25-3.5 | #6 | 3.7 | 8.0 | 21.5 | 7.0 | |||
RVS1.25-4 | #8 | 4.3 | 6.6 | 20.1 | 6.3 | |||
RVL1.25-4 | #8 | 4.3 | 8.0 | 21.5 | 7.0 | |||
RV1.25-5 | #10 | 5.3 | 8.0 | 21.5 | 7.0 | |||
RV1.25-6 | 1/4 | 6.5 | 11.6 | 27.5 | 11.1 | |||
RV1.25-8 | 5/16 | 8.4 | 11.6 | 27.5 | 11.1 | |||
RV1.25-10 | 3/8 | 10.5 | 13.6 | 31.6 | 13.9 |
1.5~2.5mm 2 (16-14) Imax=27A
ITEM.NO. | US SYSTEM OF BOLTS | d2 | DIMENSION | COLOR | ||||
B(mm) | L(mm) | F(mm) | H(mm) | D (mm) | ||||
RV2-3 | #4 | 3.2 | 6.6 | 17.8 | 4.3 | 10.0 | 4.9 | blue |
RVS2-3.5 | #6 | 3.7 | 6.6 | 17.8 | 4.3 | |||
RVM2-3.5 | #6 | 3.7 | 6.6 | 21.0 | 7.0 | |||
RVL2-3.5 | #6 | 3.7 | 8.5 | 22.5 | 7.75 | |||
RVS2-4 | #8 | 4.3 | 6.6 | 21.0 | 7.0 | |||
RVL2-4 | #8 | 4.3 | 8.5 | 22.5 | 7.75 | |||
RVS2-5 | #10 | 5.3 | 8.5 | 22.5 | 7.75 | |||
RVL2-5 | #10 | 5.3 | 9.5 | 22.5 | 7.25 | |||
RV2-6 | 1/4 | 6.5 | 12.0 | 27.6 | 11.0 | |||
RV2-8 | 5/16 | 8.4 | 12.0 | 27.6 | 11.0 | |||
RV2-10 | 3/8 | 10.5 | 13.6 | 30.2 | 13.9 |
2.5~4mm 2 (14-12) Imax=37A
ITEM.NO. | US SYSTEM OF BOLTS | d2 | DIMENSION | COLOR | ||||
B(mm) | L(mm) | F(mm) | H(mm) | D (mm) | ||||
RV3.5-4 | #8 | 4.3 | 8.0 | 24.5 | 7.7 | 12.5 | 6.2 | black |
RVS3.5-5 | #10 | 5.3 | 8.0 | 24.5 | 7.7 | |||
RVL3.5-5 | #10 | 5.3 | 12.0 | 27.9 | 7.7 | |||
RV3.5-6 | 1/4 | 6.5 | 12.0 | 27.9 | 7.7 |
4~6mm 2 (12-10) Imax=48A
ITEM.NO. | US SYSTEM OF BOLTS | d2 | DIMENSION | COLOR | ||||
B(mm) | L(mm) | F(mm) | H(mm) | D (mm) | ||||
RV5.5-3.5 | #6 | 3.7 | 7.2 | 21.4 | 5.9 | 12.5 | 6.7 | yellow |
RVS5.5-4 | #8 | 4.3 | 7.2 | 21.5 | 5.9 | |||
RVL5.5-4 | #8 | 4.3 | 9.5 | 25.5 | 8.3 | |||
RV5.5-5 | #10 | 5.3 | 9.5 | 25.5 | 8.3 | |||
RV5.5-6 | 1/4 | 6.5 | 12.0 | 31.5 | 13.0 | |||
RV5.5-8 | 5/16 | 8.4 | 15.0 | 33.7 | 13.7 | |||
RV5.5-10 | 3/8 | 10.5 | 15.0 | 33.7 | 13.7 | |||
RV5.5-12 | 1/2 | 13.0 | 19.2 | 38.1 | 16.0 |
Package of products:
Common Packing:100Pcs+Polybag+Label+Export Carton
Customized Packing:Header card packing,Blister with card packing,Double Blister packing,Canister packing,other packing can be supplied according customers requirement.
Company Information:
Yueqing Yingfa Cable Accessories Co., Ltd, is a hi-tech enterprise, occupied with a professional experts, stainless steel cable tie, Plastic stuck stainless steel cable tie, Plastic stuck stainless steel cable tie doctors, and skilled technicians, imported foreign advanced production and test equipment, mainly manufacture nylon tie, steel nail clip, wiring cap, terminal, cable marker, spiral wrapping bands, cold compressed connector and etc.
Why Chose Us?
1.We are factory,the price are competitive.
2.Good quality,the goods are passed UL,ROHS,CE,SGS,CCS ect. They have been exported to many countries and enjoy good popularity.
3.Quickly delivery,we have automatic production line,so the production is much quicker. Keep smooth delivery on time.
4.Perfect package according your demand
5.We have design/technology team and can make new products according your demand.
Services
Excellent service and first-class after-sale service
Provide professional sale person to communicate with you before the order
Provide optimum system solution based on each client's export
Provide strict check for each part,each process before export.
Provide post-sale service,including installation,technical guide and training.
Trade team of products
1.Payment:T/T,L/C,D/A,D/P ,Western Union,Paypal etc.
2.Supply Ability:20ft Container/Month
3.OEM: accept
4.Delivery: By Courier: 1-2 Working days by special offer
By Air: 4-7 Working days at appointed airport
By Sea:20-25 Working days at appointed port
If you are interested in our products, please contact with us. Thank you.
ADD: No.47, Zhongle Road, Yangzhai Village, Liushi Town,Yueqing City,Zhejiang Province,China.
Contact Person: Nicole Yang
Common Packing:100Pcs+Polybag+Label+Export Carton
Customized Packing:Header card packing,Blister with card packing,Double Blister packing,Canister packing,other packing can be supplied according customers requirement.
![Free Sample RV Screw Ring Copper Terminal with RoHS Ce ISO Certificate](http://img6.grofrom.com/www.gechiterminalco.com/226f3j00HSPbJeBsGNku/Free-Sample-RV-Screw-Ring-Copper-Terminal-with-RoHS-Ce-ISO-Certificate.webp)
Company Information:
Yueqing Yingfa Cable Accessories Co., Ltd, is a hi-tech enterprise, occupied with a professional experts, stainless steel cable tie, Plastic stuck stainless steel cable tie, Plastic stuck stainless steel cable tie doctors, and skilled technicians, imported foreign advanced production and test equipment, mainly manufacture nylon tie, steel nail clip, wiring cap, terminal, cable marker, spiral wrapping bands, cold compressed connector and etc.
![Free Sample RV Screw Ring Copper Terminal with RoHS Ce ISO Certificate](http://img6.grofrom.com/www.gechiterminalco.com/226f3j00PZLbJnMcGyqu/Free-Sample-RV-Screw-Ring-Copper-Terminal-with-RoHS-Ce-ISO-Certificate.webp)
![Free Sample RV Screw Ring Copper Terminal with RoHS Ce ISO Certificate](http://img6.grofrom.com/www.gechiterminalco.com/226f3j00WZDomTvySNqr/Free-Sample-RV-Screw-Ring-Copper-Terminal-with-RoHS-Ce-ISO-Certificate.webp)
Why Chose Us?
1.We are factory,the price are competitive.
2.Good quality,the goods are passed UL,ROHS,CE,SGS,CCS ect. They have been exported to many countries and enjoy good popularity.
3.Quickly delivery,we have automatic production line,so the production is much quicker. Keep smooth delivery on time.
4.Perfect package according your demand
5.We have design/technology team and can make new products according your demand.
![Free Sample RV Screw Ring Copper Terminal with RoHS Ce ISO Certificate](http://img6.grofrom.com/www.gechiterminalco.com/226f3j00WjLowuCIlycp/Free-Sample-RV-Screw-Ring-Copper-Terminal-with-RoHS-Ce-ISO-Certificate.webp)
Services
Excellent service and first-class after-sale service
Provide professional sale person to communicate with you before the order
Provide optimum system solution based on each client's export
Provide strict check for each part,each process before export.
Provide post-sale service,including installation,technical guide and training.
![Free Sample RV Screw Ring Copper Terminal with RoHS Ce ISO Certificate](http://img6.grofrom.com/www.gechiterminalco.com/226f3j00WsPqdivCwFcg/Free-Sample-RV-Screw-Ring-Copper-Terminal-with-RoHS-Ce-ISO-Certificate.webp)
Trade team of products
1.Payment:T/T,L/C,D/A,D/P ,Western Union,Paypal etc.
2.Supply Ability:20ft Container/Month
3.OEM: accept
4.Delivery: By Courier: 1-2 Working days by special offer
By Air: 4-7 Working days at appointed airport
By Sea:20-25 Working days at appointed port
![Free Sample RV Screw Ring Copper Terminal with RoHS Ce ISO Certificate](http://img6.grofrom.com/www.gechiterminalco.com/226f3j00iZLowMvlwObz/Free-Sample-RV-Screw-Ring-Copper-Terminal-with-RoHS-Ce-ISO-Certificate.webp)
If you are interested in our products, please contact with us. Thank you.
ADD: No.47, Zhongle Road, Yangzhai Village, Liushi Town,Yueqing City,Zhejiang Province,China.
Contact Person: Nicole Yang
